Application of ZX50C/SP2250 Drilling and Milling Machine

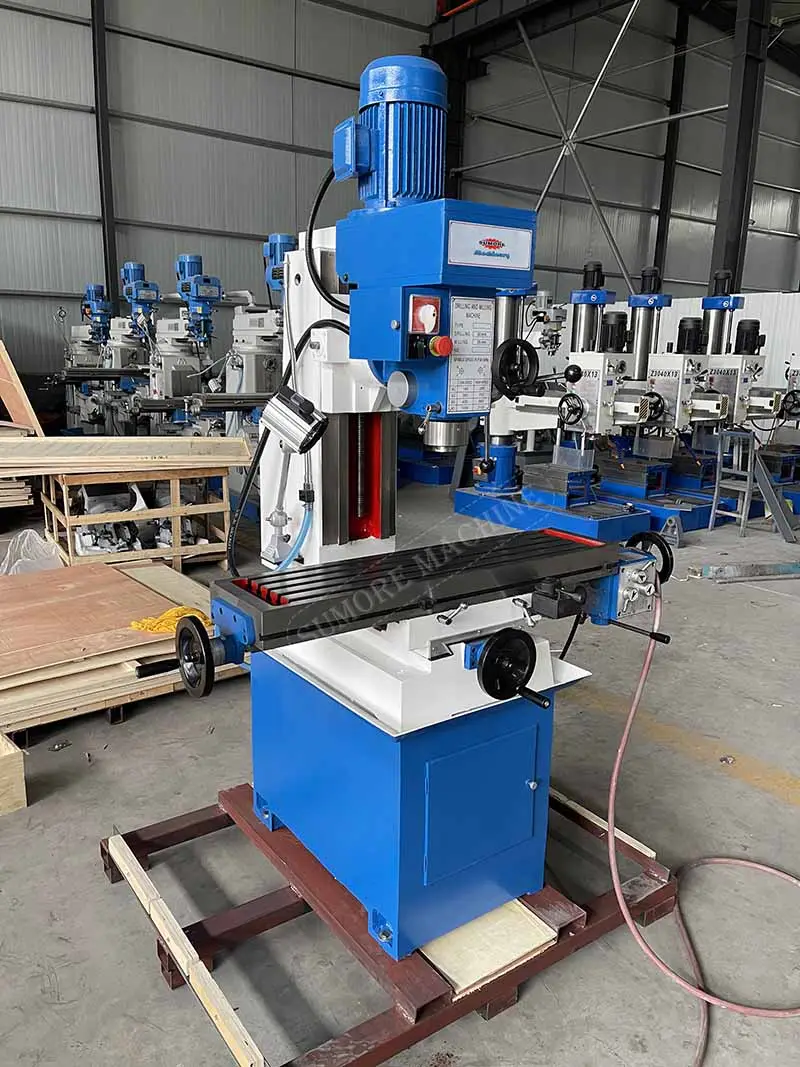

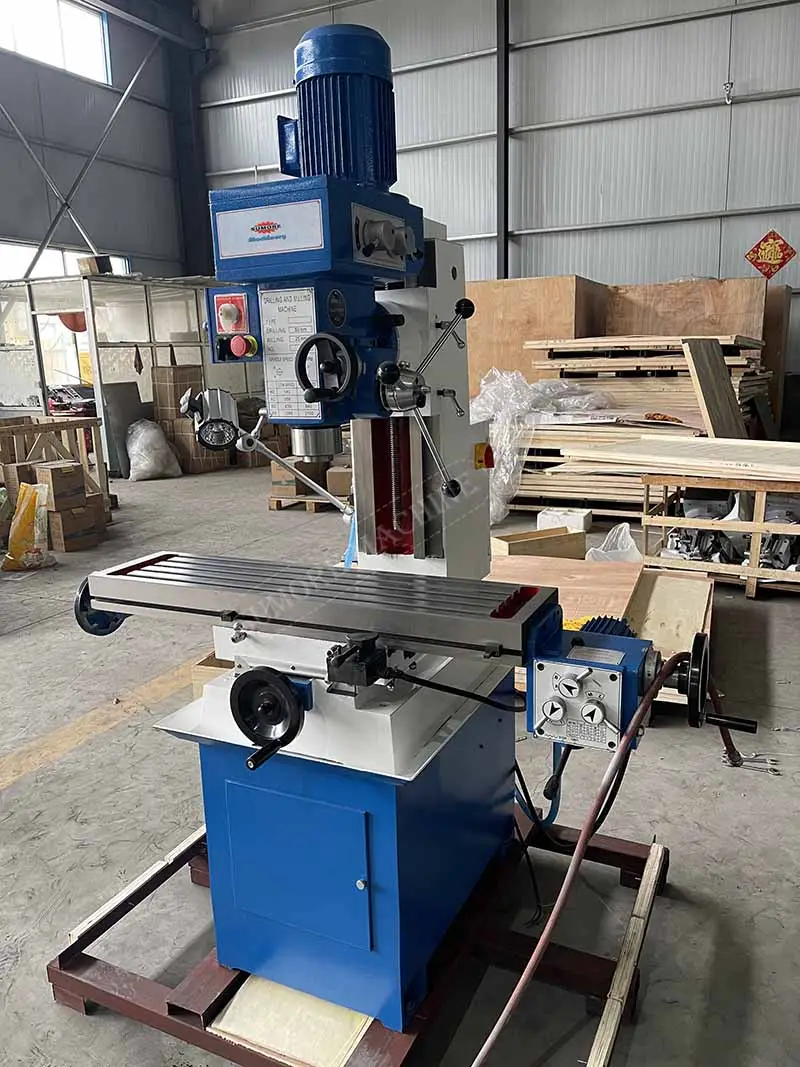

The ZX50C is a vertical multi-functional drilling and milling machine that integrates drilling, milling, boring, and tapping functions. This machine is widely used in machinery manufacturing, mold making, automotive, repair, education, and DIY industries.

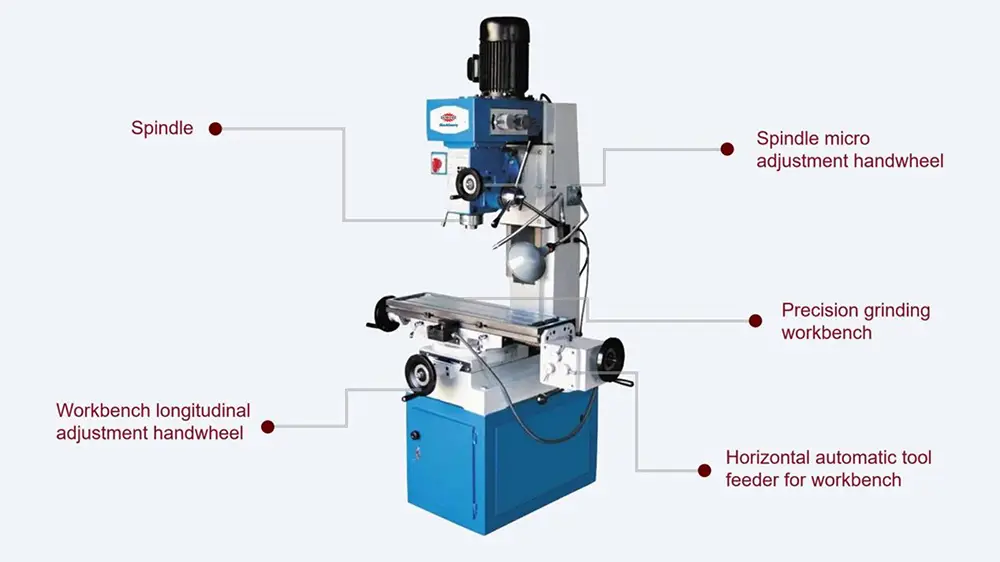

ZX50C Milling Machine Advantages

● Multi-process Integration: Supports multiple machining methods including drilling, milling, boring, grinding, and tapping.

● Adjustable Structure: The spindle box can rotate left and right, and the worktable can rotate horizontally.

● High Rigidity Design: The guide rail surface is heat-treated for high hardness and strong rigidity; the gears are high-frequency quenched and tempered.

● Flexible Operation: Automatic longitudinal feed of the worktable improves batch production efficiency.

Typical Application Scenarios of ZX50C

I. Mechanical Manufacturing and Parts Processing (Batch/Single Piece)

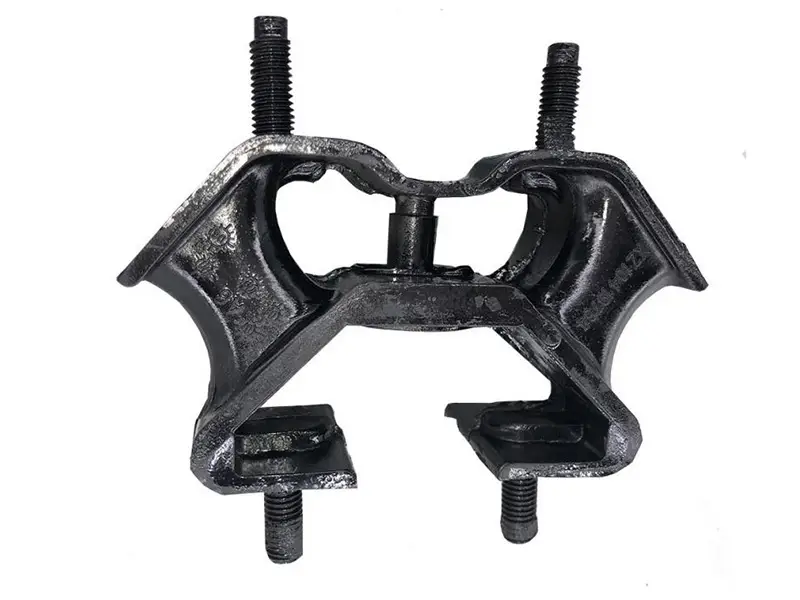

● Automotive Parts Processing

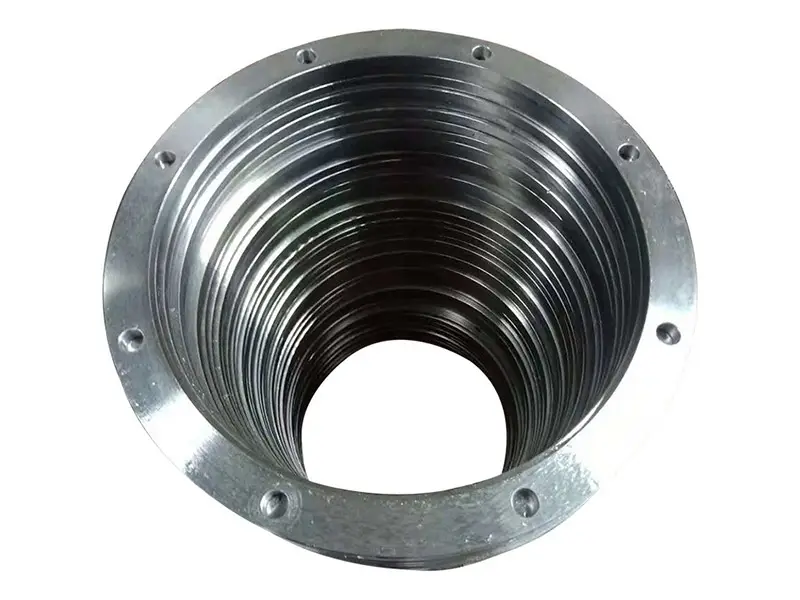

● General Mechanical Parts

● Precision Instrument Parts

II. Mold and Tooling Fixture Manufacturing

● Simple Mold/Insert Machining

● Tooling/Fixture/Inspection Gauges

III. Equipment Repair and Remanufacturing

● Machine Tool/Equipment Repair

● Agricultural Machinery/Construction Machinery Repair

IV. Teaching and Practical Training (Colleges/Training Centers)

● Mechanical Training Base

V. DIY and Small Workshops (Maker/Handmade/Small Batch)

● Metal Handmade/Model Making

● Small Hardware/Sheet Metal Processing

VI. Special Applications (Modification/Experimentation)

● Modification of Magnesium Alloy Thin Plate Friction Stir Welding Equipment

Typical Customer Case 1: A Machine Tool Factory

● Requirements: Machining small hydraulic valve blocks and connectors, requiring drilling, milling, tapping, and boring, with multiple varieties and small batches.

● Solution: Selecting the ZX50C, equipped with an indexing head, vise, and drilling/milling cutters.

● Results: One machine replaced a drilling machine + milling machine + tapping machine, saving 50% on equipment investment; processing cycle shortened by 30%, changeover time shorter; stable precision, high pass rate, meeting customer requirements.

Typical Customer Case 2: A Small to Medium-Sized Mold Parts Factory

● Requirements: Producing standard injection mold parts (guide pillars, guide bushings, ejector plates, etc.), with many product specifications, small batches, long process flow times, and frequent product changeovers.

● Solution: Selecting the ZX50C, with the drilling/milling machine as the main processing equipment.

● Results: One ZX50C replaced the original bench drill and simple milling machine, handling all hole drilling, reaming, boring, and end milling. When machining guide bushings, first use an end mill to finish the end face, then use a boring bar to precision bore the inner hole, completing the process in one setup; reducing equipment investment and labor costs.

Summary

The ZX50C milling machine is multi-functional, easy to operate, space-saving, and cost-effective; suitable for small to medium batch production, diverse product range, and rapid changeover scenarios, it is an ideal choice for small and medium-sized enterprises, repair shops, educational institutions, and maker spaces.
