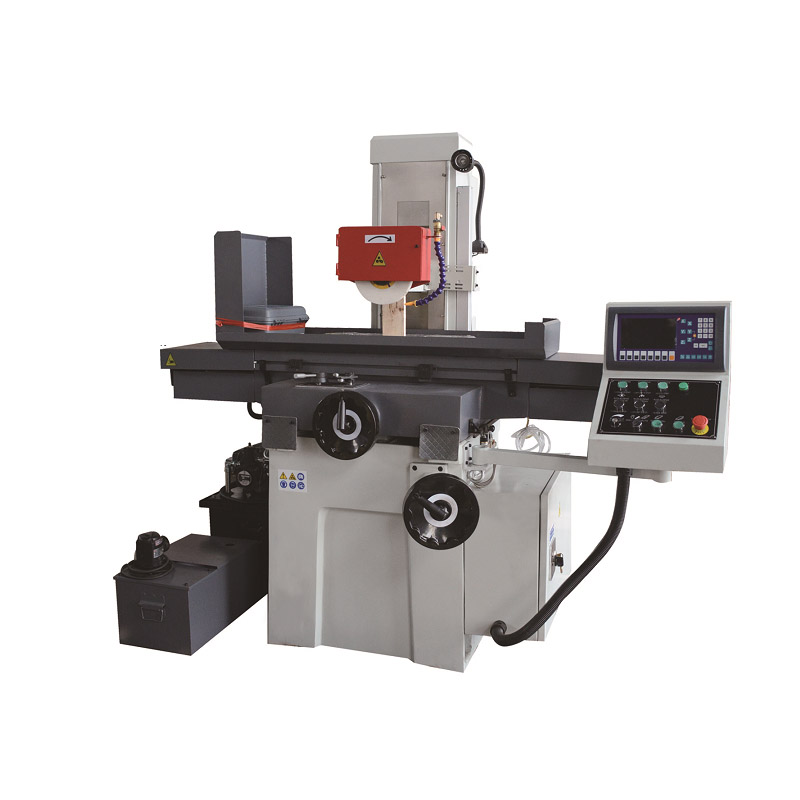

SP1022AHR
Specifications
Accessories
Model No.
M1022AHR
Working surface of Table (W x L)
250 x 520mm
MinimumTable travel (y,x)
260 x 550mm Minimum
Minimum distance spindle centre-table
450mm
Magnetic Chuck-size
250 x 500mm
Longitudinal feeds(Hydraulic)
5-25m/min
Automatic Cross Feed of Saddle
0.5-10mm
Grinding wheel size
200 x 20 x 31.75mm
Speed
2800 rpm Minimum
Spindle motor
1.5, 3phase
Hydraulic pump motor
0.75 Coolant pump motor
Total rated power(Coolant pump motor
Elevating motor Cross feed motor )
3KW, 3phase
Maximum table load including magnetic chuck
200Kg
Net weight of machine
1100 Kg Minimum
STANDARD& Optional ACCESSORIES
Wheel balancing base, Wheel balancing arbor
Grinding wheel Diamond dresser fit on the top of machine
spindle grinding wheel
Tool box(Spanner Set, L-Key Set, Wrench 10”, Puller,
Screw Driver Set, Plier, Nose Plier, Grip Plier)
Low volt machine light, Built in demagnetizer,
Coolant system, 250 x 500mm electro-magnetic chuck
Number
Surface grinder Accessories
SG01001
Permanent Magnetic Chuck
SG01002
Micro Feed
SG01003
Digital Readout System
SG01004
Tiltable Permanent Chuck
SG01005
Rear Splash Guard
SG01006
Overhead Parallel Dresser
SG01007
Angle Dresser
SG01008
Magnetic Separator
SG01009
Hydraulic Overhead Parallel Dresser
SG01010
Cooling c/w Magnetic Paper Filter
